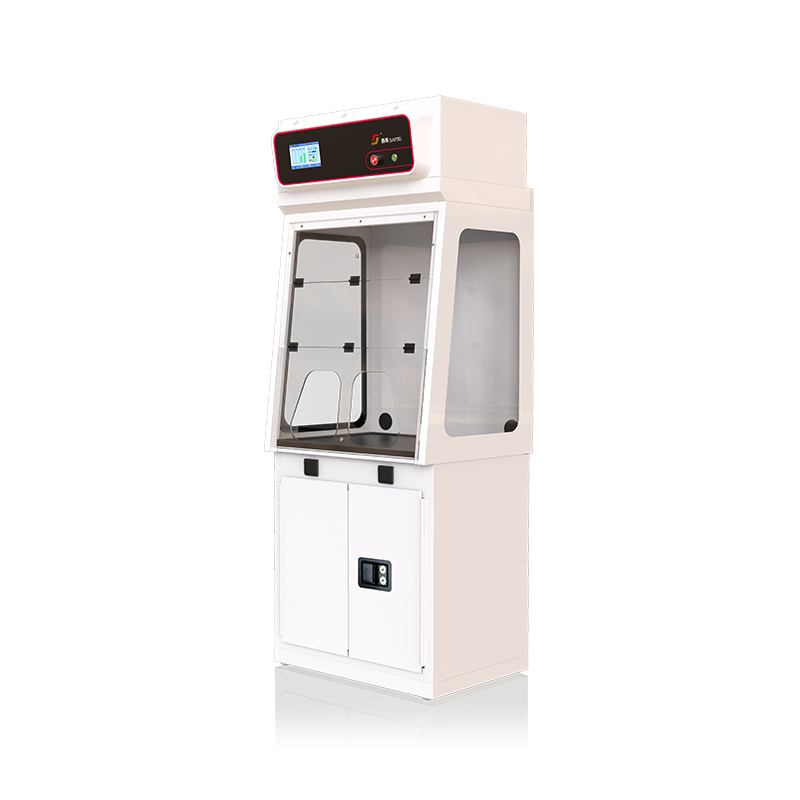

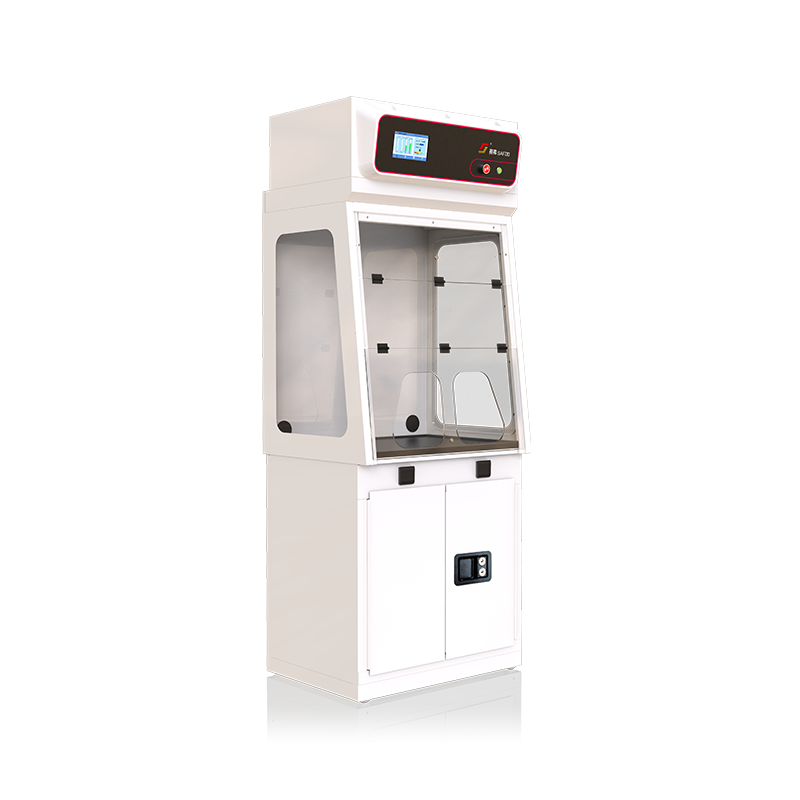

The Filtered Fume Hood is equipped with activated carbon molecular filters and air particulate filters, capable of adsorbing most harmful chemical gases, thereby reducing the operational energy consumption (costs) of air conditioning and ventilation systems. Its applications span various industries, including education and scientific research, inspection and quarantine, healthcare, food and pharmaceuticals, chemical engineering, environmental safety, national defense, and military industries.
● Metal material : ≥1.2mm high-quality cold-rolled steel plate.
● The main material of the cabinet body: ≥15mm transparent acrylic sheet;
● Display: 7-inch LCD touchscreen display with real-time monitoring capabilities for temperature, humidity, fan operation, and VOC concentration,etc.；
● Fan: Centrifugal fan；
● Filtration system: Complies with ASTM standards, effectively targets acidic and organic gases with strong adsorption capacity；
● Work surface: Epoxy resin；
● Lighting: LED lamp；
● Application: Desktop or mobile wheel base, adaptable to any complex experimental site.
| Model No. | Exterior Dimension H×W×D(mm) | Air handling capacity（m³/h） | Average surface wind speed（m/s） | Electric Power | No.of shelves | Power（W） |
| GA080 | 2070×880×700 | 240 | 0.4-0.6 | AC220V/50HZ | 1 | 187 |
| GA100 | 2070×1000×700 | 240 | 0.4-0.6 | AC220V/50HZ | 1 | 187 |
| GA127 | 2070×1275×700 | 300 | 0.4-0.6 | AC220V/50HZ | 3 | 307 |
| GA160 | 2070×1600×700 | 300 | 0.4-0.6 | AC220V/50HZ | 1 | 307 |
| GH080 | 1245×800×620 | 240 | 0.4-0.6 | AC220V/50HZ | 2 | 60 |
| GH100 | 1245×1000×620 | 240 | 0.4-0.6 | AC220V/50HZ | 3 | 60 |
