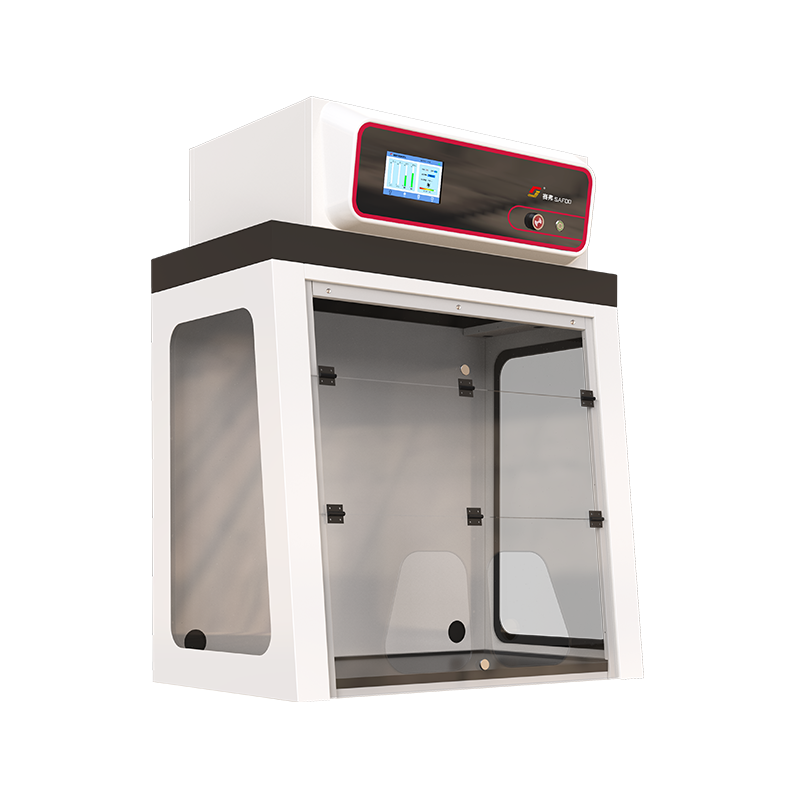

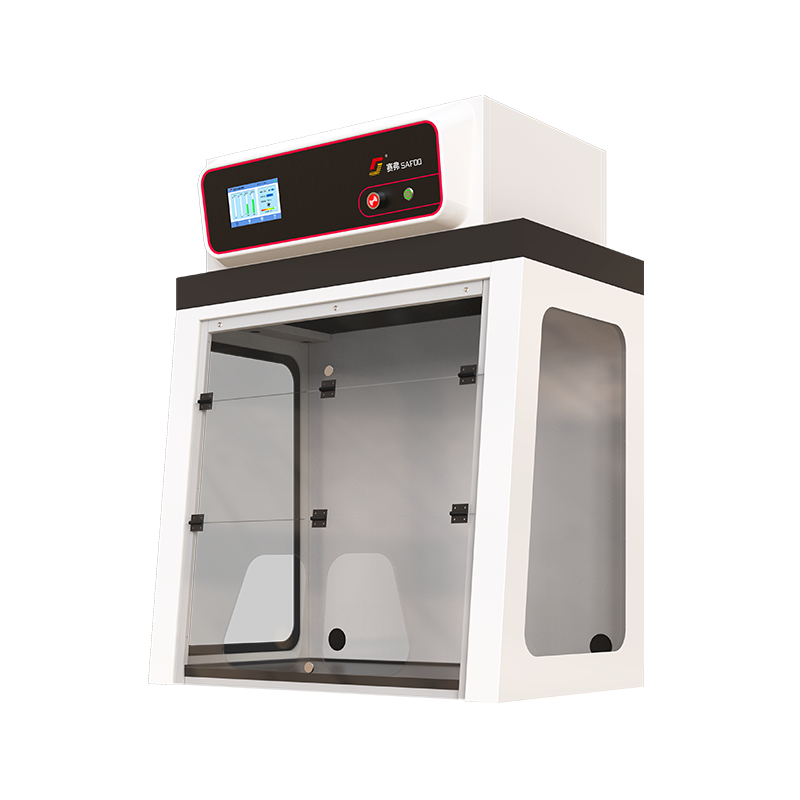

The Filtered Fume Hood is equipped with activated carbon molecular filters and air particulate filters, capable of adsorbing most harmful chemical gases, thereby reducing the operational energy consumption (costs) of air conditioning and ventilation systems. Its applications span various industries, including education and scientific research, inspection and quarantine, healthcare, food and pharmaceuticals, chemical engineering, environmental safety, national defense, and military industries.
● Cabinet: ≥1.2mm high-quality cold-rolled steel plate;
● Front & Side panels: ≥6mm transparent acrylic viewing windows;
● Display: 7-inch LCD touchscreen for real-time monitoring of temperature, humidity, fan status, and VOC concentration,etc.;
● Fan: Centrifugal fan;
●Control panel: ABS material.
Filter Selection:
① Organic Filter ② Ammonia Filter
③ Inorganic Filter ④ HEPA Filter
⑤ Formaldehyde Filter
⑥ Nano Photocatalytic & UV Sterilization
Configuration Options:
Resin Epoxy Worktop / Fixed Base / Mobile Base / Chemical-Resistant
Laminate Worktop / Stainless Steel Worktop / Industrial Ceramic
Worktop / Tempered Glass Worktop
| Model No. | Exterior Dimension H×W×D(mm) | Air handling capacity（m³/h） | Average surface wind speed（m/s） | Electric Power | Filter | Power（W） |
| GAC080 | 1225×880×700 | 240 | 0.4-0.6 | AC220V/50HZ | Two D types | 187 |
| GAC100 | 1225×1000×700 | 240 | 0.4-0.6 | AC220V/50HZ | Two D types | 187 |
| GAC127 | 1225×1275×700 | 300 | 0.4-0.6 | AC220V/50HZ | Six B types | 307 |
